Back Rails (Slotwall with Hardboard)

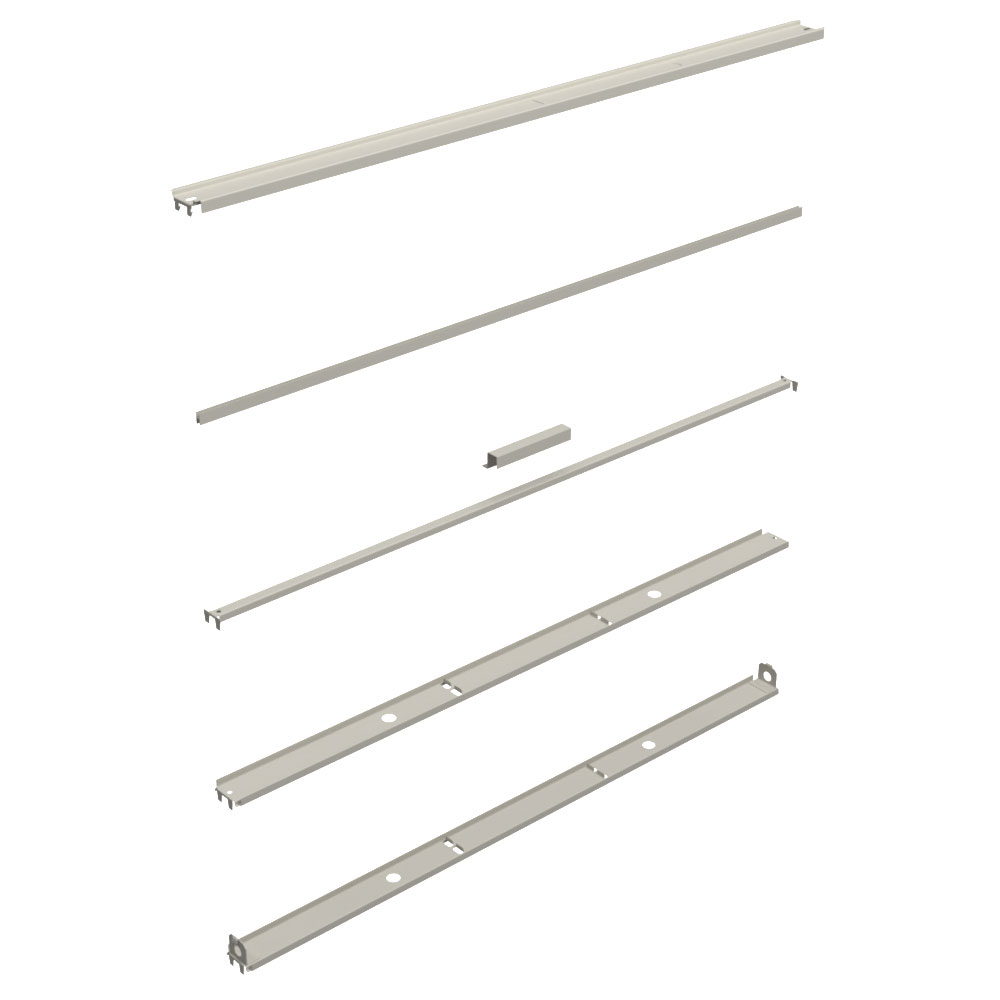

Back Rails (Slotwall with Hardboard) are the Rails to use when Slotwall Backs are used on one side and Hardboard Backs on the other side for a Lozier Gondola.

Download PDF

Product Details

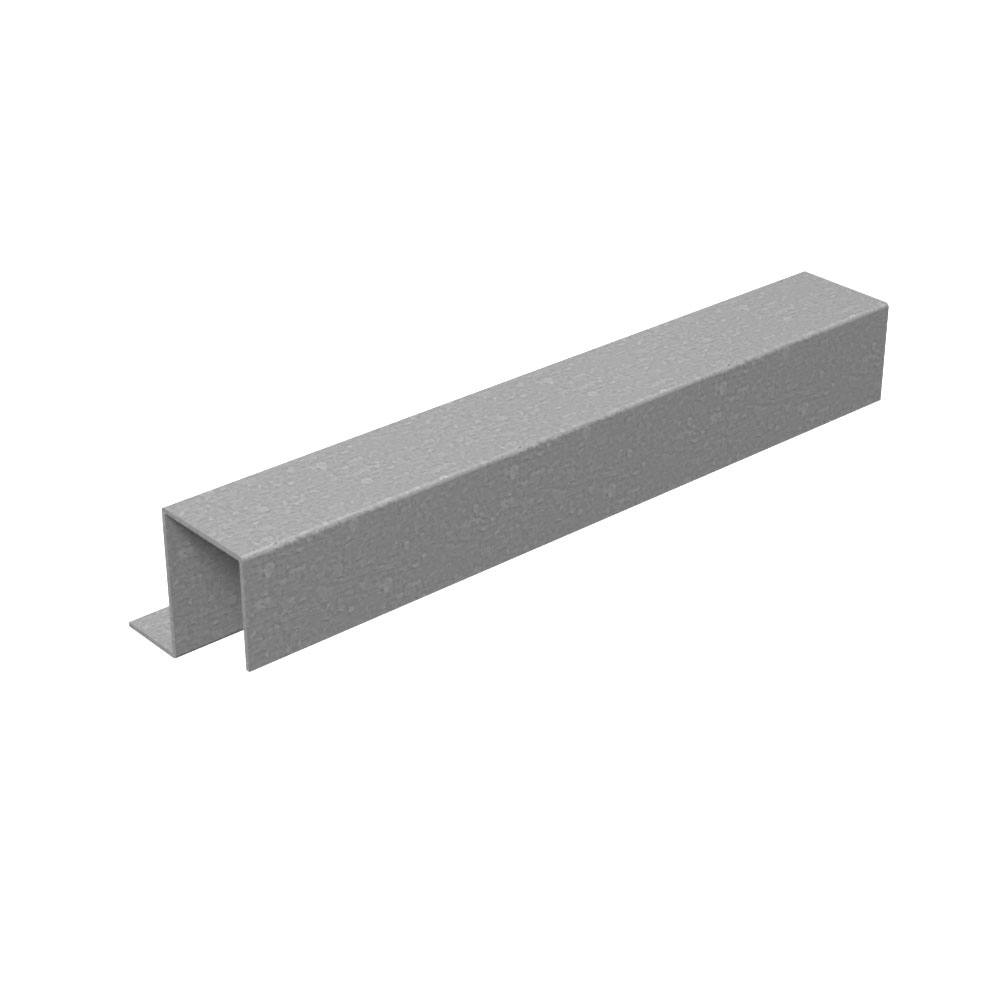

Slotwall with Hardboard Island and Wall Sections require at least one Top, Slotwall Center, Hardboard Back Support Clip, and Heavy Duty Bottom Rail
36” – 66”H Uprite requires: one Center Rail and one Support Clip
72” – 144”H Uprite requires: two Center Rails, two Support Clips and one Half Splicer

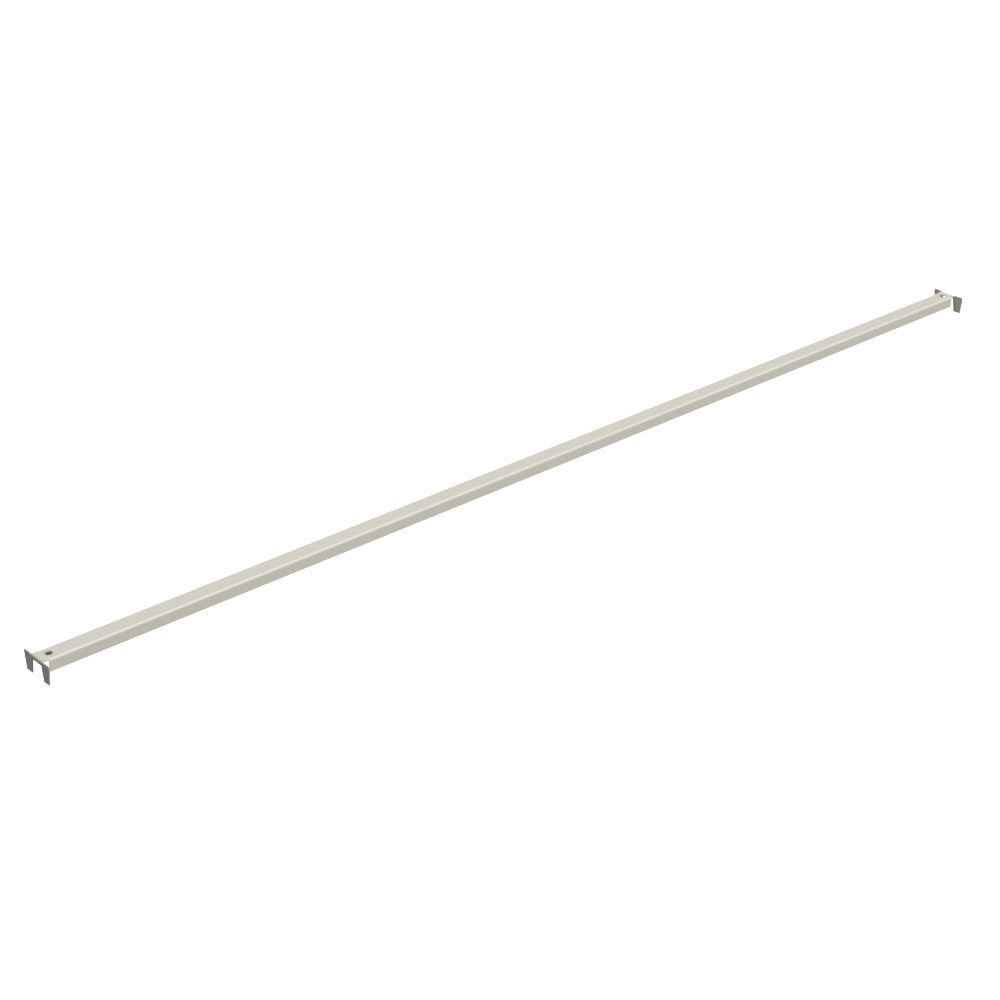

On Extension Uprites, use one Slotwall Center Rail on 12” – 60”H Uprites and two on 66” – 72”H Uprites
Electrical knockouts included on Top Rails

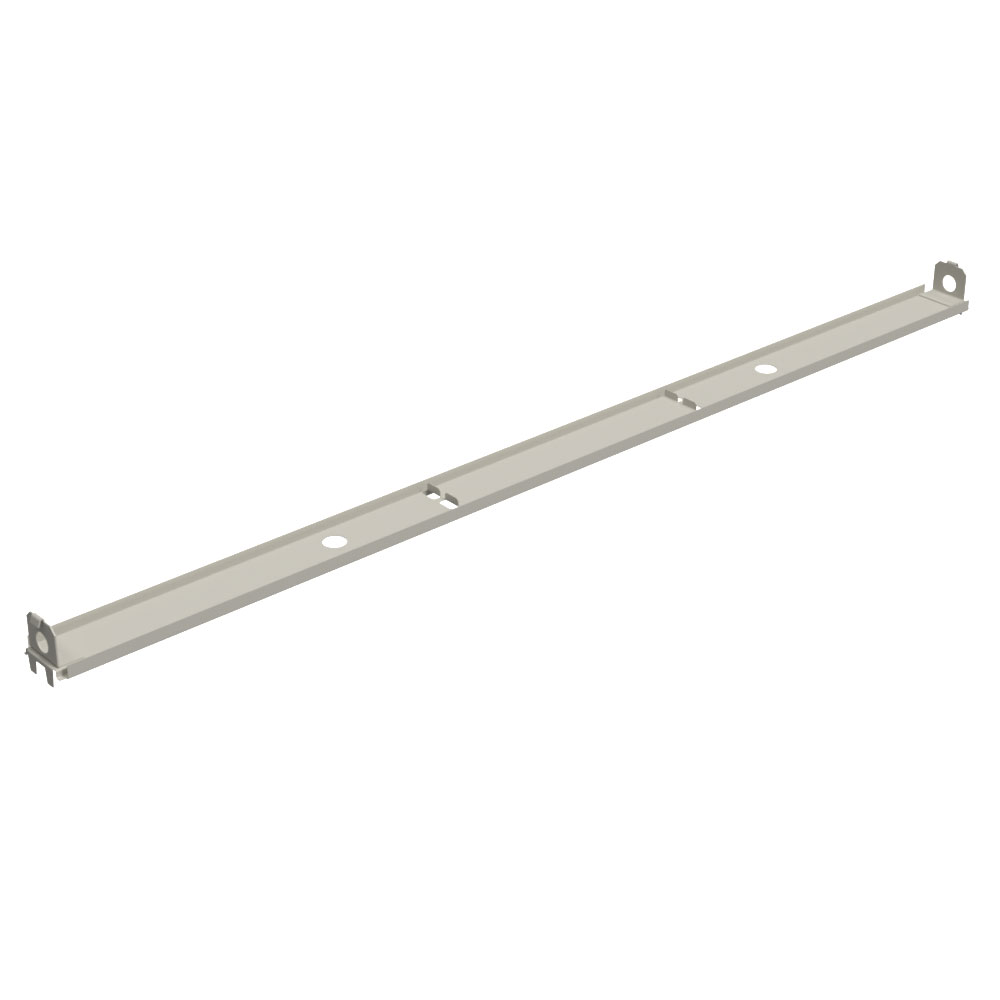

For 2’ and 30” sections, use Standard Duty Bottom Rail (Heavy Duty Bottom Rail unavailable)
