Base Bracket Anchor Plate

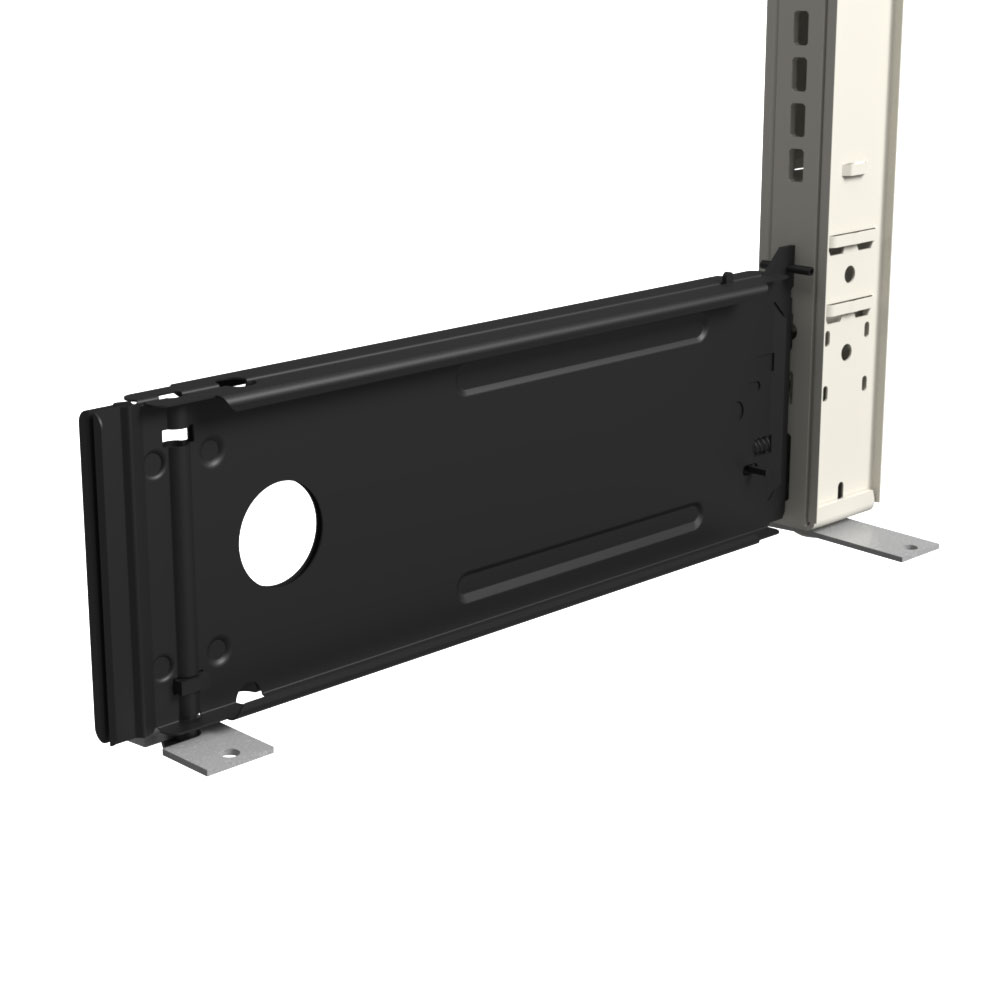

Base Bracket Anchor Plate installed

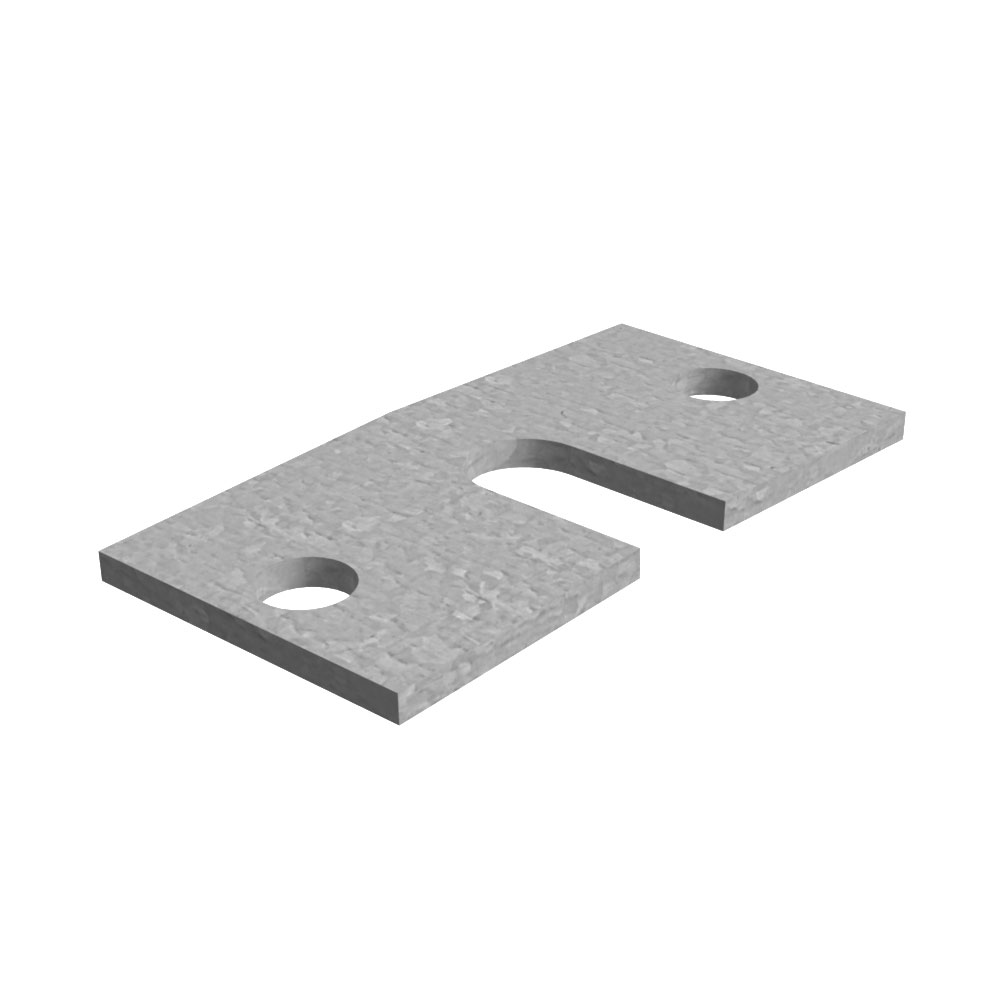

Base Bracket Anchor Plate

Part Number: DC1242

Base Bracket Anchor Plates are required when your fixture exceeds height-to-depth ratio limits and for fixtures over 5′ tall in certain seismic zones. The plates secure each Leveling Leg to the floor using anchor bolts.

Product Details


  • Use Anchor Plates when shelving unit exceeds height-to-depth ratio limits
  • Accepts 1/4” or 3/8” diameter anchor bolts (not included)
  • Holes are 7/16″ diameter
  • Required for shelving over 5’ H in certain seismic zones
  • Secures leveling leg to floor

Product Options and Numbers


Part #:   DC1242   GLV

Base Bracket Anchor Plate: DC1242

Standard Finish:  GLV

Codes

GLV: Galvanized
