Gondola Caster T-Leg

Gondola Caster T-Leg

Lozier Gondola Caster T-Leg system is ideal for applications when no base is desired. The T-leg system creates an unique display configuration that can be used as a stand alone solution for impulse areas or other display ideas.

NOTE: Subject to extended lead times.

2d CAD BLOCKS

3d CAD BLOCKS

Download PDF

Product Details

Utilizes standard backs and rails with bolt on lower spanner and bolt on T-legs
T-Legs are available in different depths
T-Leg Uprite End Trim required for ends of run
Create desired run length using a combination of 3′ & 4′ sections. Allow for required space to move assembled longer runs
2″ sq. tubular legs with 3″ locking caster provides 800# single and 400# continuous run section load rating
Base Decks to Fit Caster T-leg (TSD_N) are available but not required

How to Order

Components (order Separately)

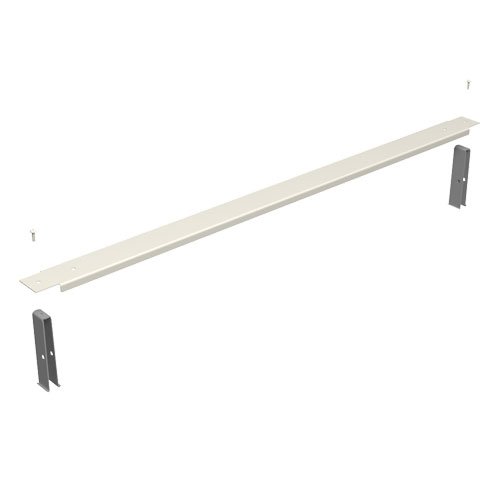

Caster T-Leg Top Stabilizer

Caster T-Leg Lower Spanner

T-Leg Uprite End Trim

Ordering Instructions

Order desired number of Island Sections without Base Brackets, Base Fronts, Decks, Uprite End Trim or Base End Trim (See Gondola Island Section).
Order four desired depth T-Legs for each independent section or two T-Legs for each continuous run section.
Order one T-Leg Lower Spanner for each section
Order one Caster T-Leg Top Stabilizer for each section.

Island

Caster T-Leg Depth (Both Sides)

Max. Uprite Height

13″

78″

16″

96″

19″

96″

22″

96″
