Product Details
- Load Rating
- 600 lbs evenly distributed per deck (13″ – 19″ D)
- 800 lbs evenly distributed per deck (22 – 25″ D)
- Freestanding End Display
- Pegboard Front Panel and Martek Back Panel, other Back Panel styles available
- Order Shelves separately
- Order Gap Filler to close off the bottom rear when unit is wider than the island width.
- Actual width of unit equals nominal width plus 2″
- Wall End Stabilizers required and ordered separately for Non-Compliant height to depth Wall End Displays (See Product Safety information for Height to Depth Chart)
How to Order
TOP RAIL
The Lozier Top Rail is used as a top trim piece on a Lozier Gondolas and end Solutions
HARDBOARD BACK
Hardboard Back Panels come in several configurations and colors.
CENTER RAIL
The Lozier Center Rail is for use on Gondola’s utilizing Hardboard Back Panels. The Center Rail holds the Hardboard Back Panel in place and prevents bowing. Use 2 per section for heights of 78H-120H.
UPRITE
Uprites are an essential component, supporting your Backs, Rails, Shelves, Decks, Base Brackets and more. Each face of the Uprite serves a purpose in supporting your Gondola or End Solution
SPLICER RAIL
The Lozier Splicer Rail is used to separate two back panels in 78″ to 144″ high applications.
UPRITE END TRIM
Uprite End Trim snaps onto first and last Uprite and/or Extension Uprite to finish the appearance of your Gondola.
BOTTOM RAIL
The Lozier Bottom Rail holds the back in place on a Lozier Gondola or End Solution
SPRING LOCKING BASE BRACKET
Our Base Bracket serves as the foot of your Wall or Island section, locking into the Uprite using an integral spring latch. Available in Standard or Heavy Duty.
BASE END TRIM
Finish off your Island or Wall Shelving run with our Base End Trim. The Trim attaches to the first and last Base Bracket of the run, hiding the Bracket from customers’ view.
CLOSED BASE FRONT
The Closed Base Front snaps in place at the foot of your Island, Wall section or End Solution to block dust and other objects from collecting under your fixture. The Closed Base Front fits flush with the floor regardless of leveling adjustments.

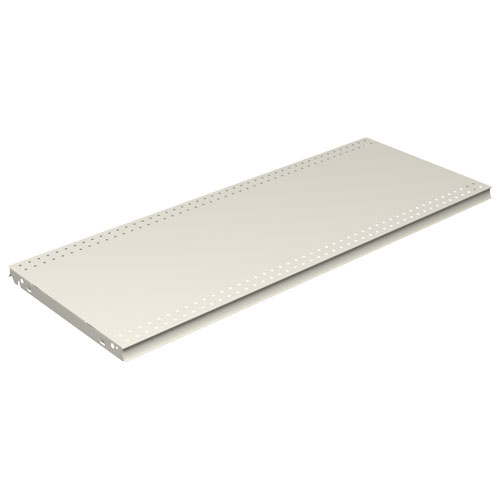

STANDARD DECK
Base Deck acts as the bottom shelf of your unit and covers the floor beneath the fixture.
GAP FILLER (OPTIONAL)
Order the Gap Filler to fill the open space between the Bottom Rail and floor on the rear side of your Wall run.
Components (order Separately)
Quantity
NOTE:
Center Rail: Use 1 for all fixture heights up to 96″. Use 2″ Center Rails for 102″ and taller fixture heights
Splicer Rail: Fixtures 78″ and higher will require a Splicer Rail
Wall End Display Available Sizes
–
Height
Depth
48″
54″
60″
66″
72″
78″
84″
90″
96″
13″
Yes
Yes
N/A
N/A
N/A
N/A
N/A
N/A
N/A
16″
Yes
Yes
Yes
Yes
Yes
N/A
N/A
N/A
N/A
19″
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
N/A
22″
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
25″
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Wall End Display Components
Order Components Separately
