Contoured End Deck

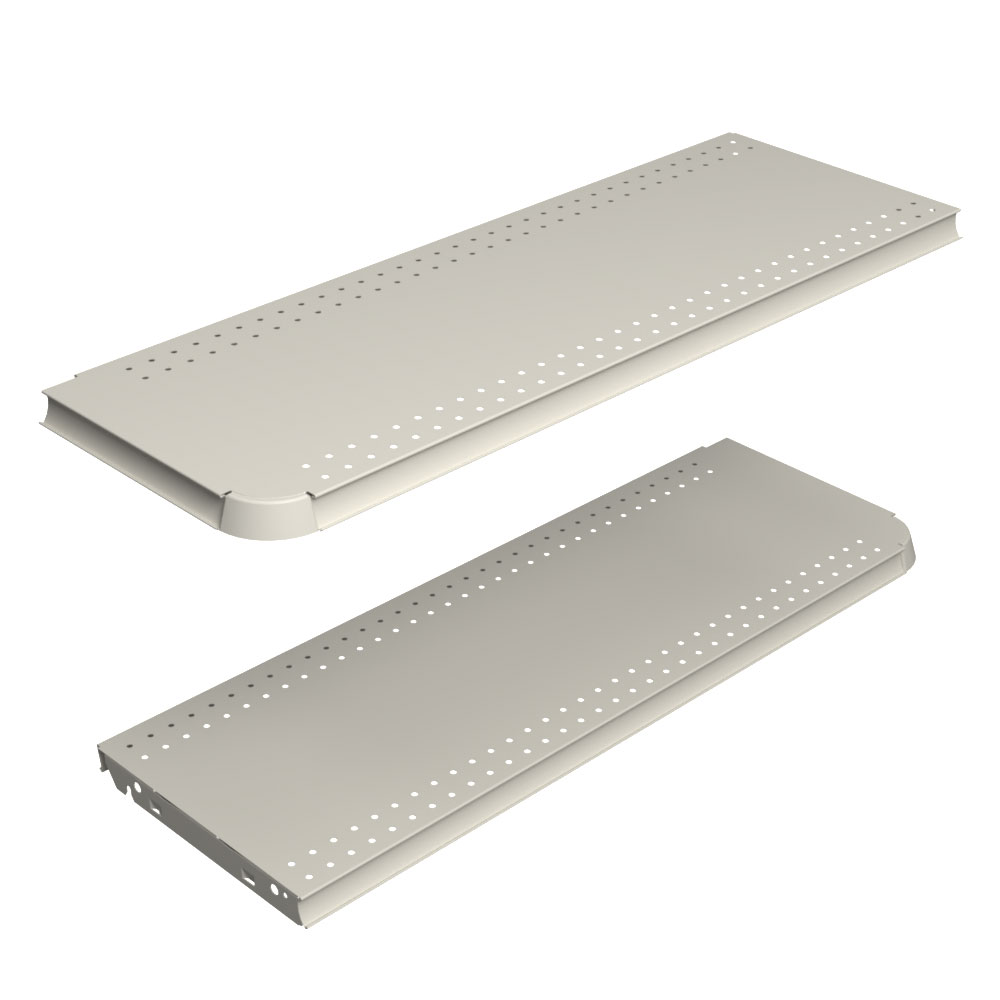

Contoured End Deck – Left and Right Corner

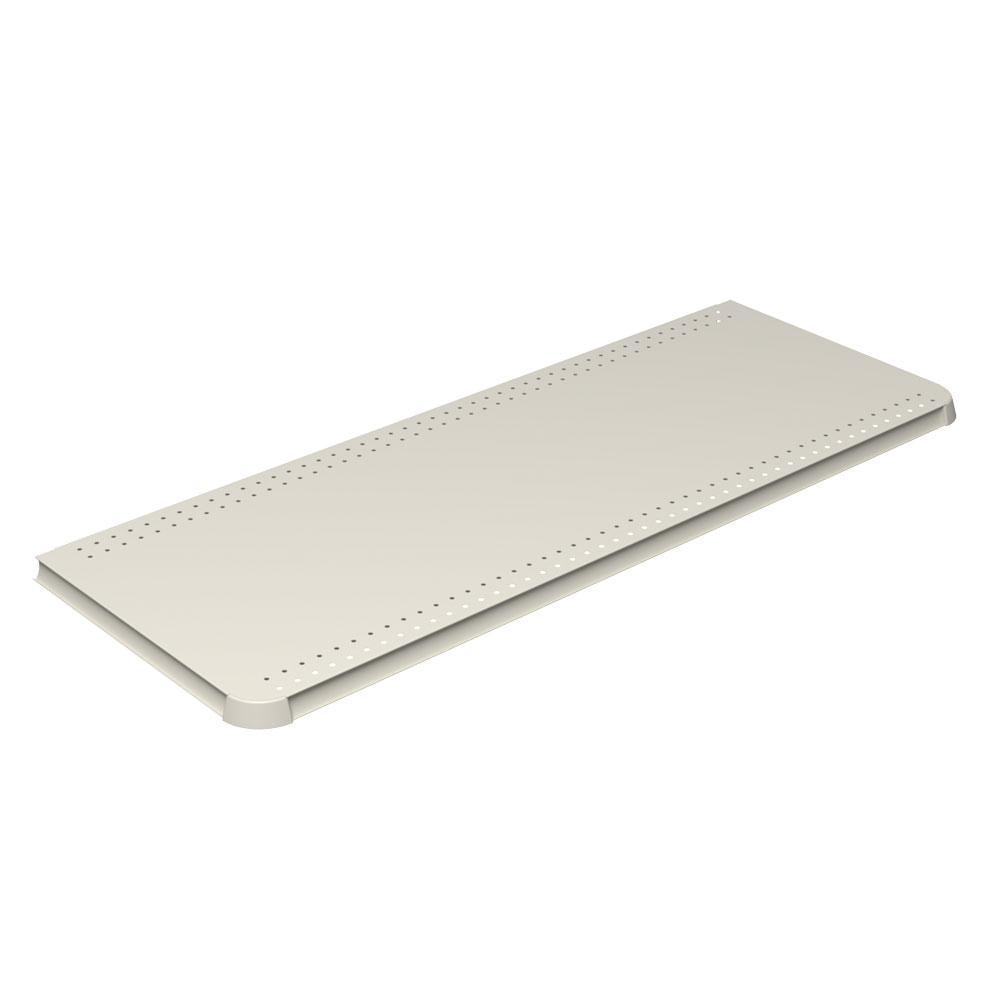

Contoured End Deck
Part Number: CED
Order Contoured End Deck with other Contoured End Display components. The Standard Deck features rounded corners on both corners and 1.235″ Tag Molding formed on all three sides. The LH/RH decks feature a rounded corner on one side and 1.235″ Tag Molding formed on 2 sides.
Product Details
- Features rounded corners
- 1.235″ Tag Molding formed on three sides
- Will not accommodate Wire Fronts
- Evenly distributed load of 600 lbs per Deck
- Available in Standard (rounded corners both sides) or LH and RH (rounded corner one side only)
Product Options and Numbers
Example Part #: CED 4 19 N PLT
CED: Contour End Deck
Round Corner: L (Left hand), R (Right hand) Blank (Both)
Width: 2′, 30″, 3′, 4′
Depth: 13″, 16″, 19″, 22″, 25″
No Molding: N
Standard Finish: PLT, Optional Catalog Colors
Codes
N
No Molding
PLT
Platinum
