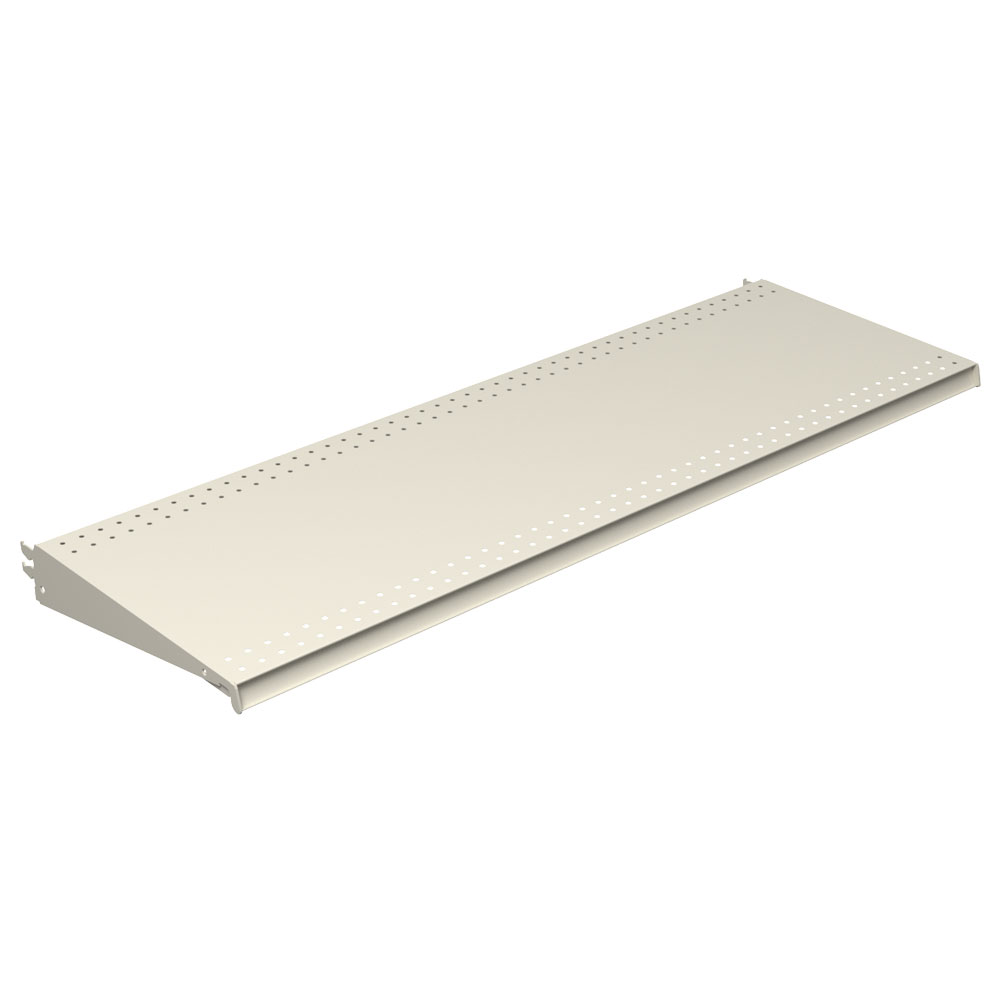

DL Shelf

Part Number: DL

DL Style Shelf is a drop-in shelf with multiple positions available. Shelf can be adjusted 1″ vertically for maximum flexibility.

Product Details


  • Three position, drop-in shelf with extended bracket
  • Angular adjustment: flat, 17° or 30° downslope
  • 1/4″ perforations for clip-on accessories

Product Options and Numbers


Example Part #:   DL   4   19   N   PLT

DL Shelf: DL

Width:  2’, 30″, 3’, 4′

Depth: 7”, 10”, 13″, 15″, 16″, 17″, 19”, 22″, 25″, 28″, 31″

Molding: N

Flat

17°

30°

7″

300 lbs

300 lbs

125 lbs

10″ – 19″

500 lbs

250 lbs

250 lbs

22″ – 25″

500 lbs

250 lbs

125 lbs

28″ & 31″

400 lbs

200 lbs

100 lbs

Lbs. Evenly Distributed

Codes

N

No Molding

PLT

Platinum
