Product Details
- S-Series Storage Sections must be stabilized with either Crossbraces or Back Panels
- Crossbraces (or Back Panels) are required on end sections of each run and every fourth section in between for stabilization
- See diagram below for minimum recommended placement of Crossbraces per run
- Back-to-back runs can share Crossbraces if Uprites are securely connected with S-Series Storage Screws (#SS2221)
- If the section height is over 96″, two sets of Crossbraces are required for the section (one lower and one upper Crossbrace – see tables below)
Product Options and Numbers
Example Part #: SSX 4 72 RD GLV
S-Series Crossbrace: SSX
Section Width: 3′, 4′
Crossbrace Height: 36″, 72″
Crossbrace Type: RD, HD (72″H only)
Standard Finish: GLV

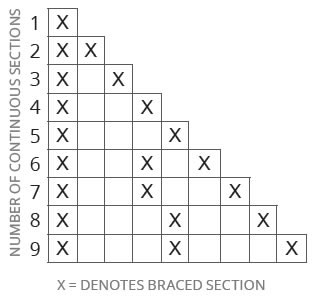

Minimum Bracing Requirements Diagram
Codes

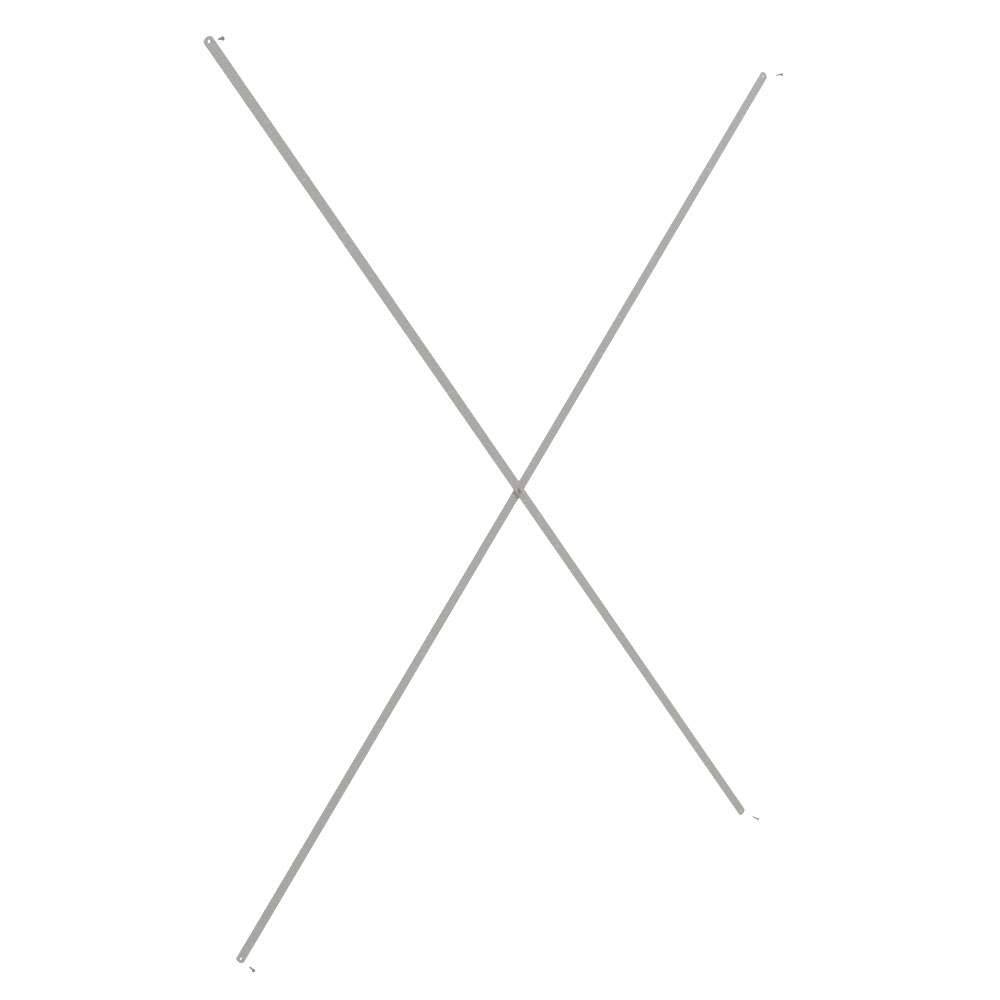

RD
Regular Duty Shelf

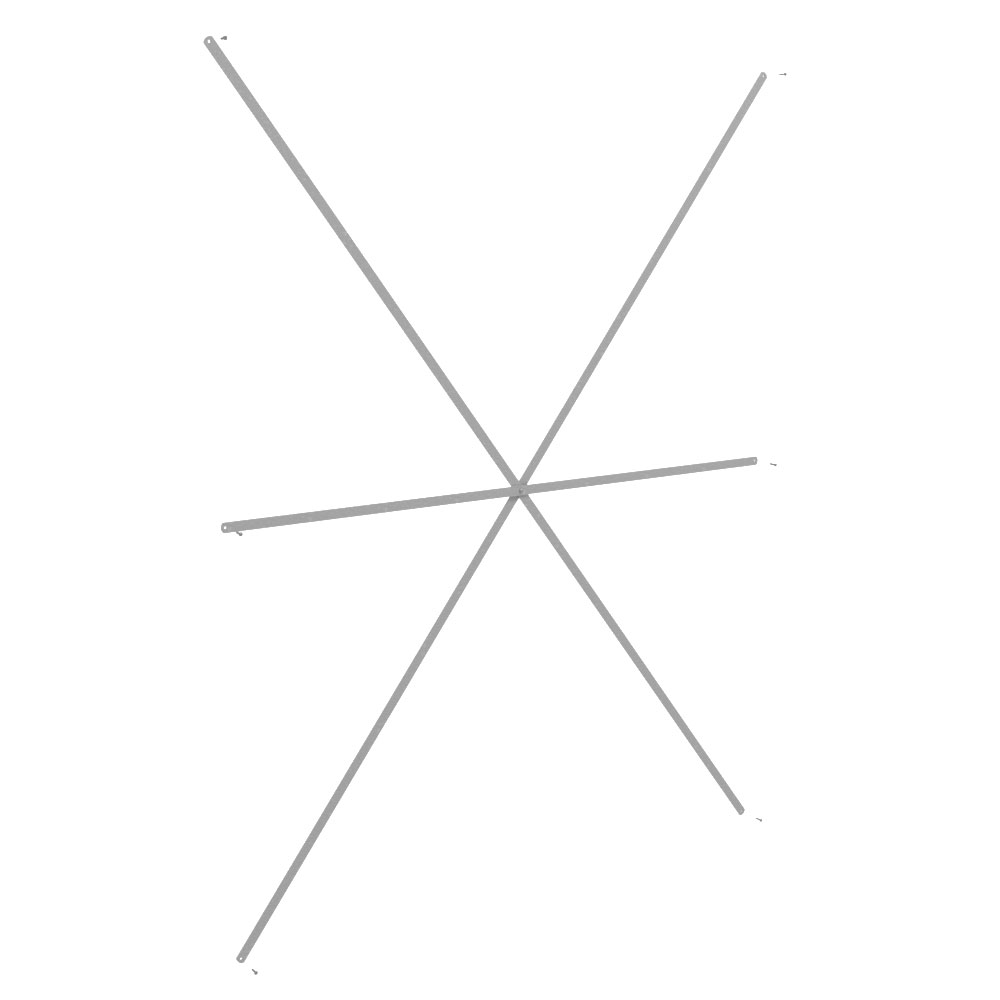

HD
Heavy Duty Shelf
GLV
Galvanized
Regular Duty Application
Uprite Height
QTY./Section
Crossbrace Part #
36H
1
SSX_36RD
48H
1
SSX_36RD
60H
1
SSX_36RD
72H
1
SSX_72RD
84H
1
SSX_72RD
96H
1
SSX_72RD
Need to specify 3 or 4ft width
Heavty Duty Application
Uprite Height
QTY./Section
Crossbrace Part #
72H
1
SSX_72HD
84H
1
SSX_72HD
96H
1
SSX_72HD
108H
2
SSX_72RD
120H
2
SSX_72RD
144H
1
SSX_72HD
144H
1
SSX_72RD
Need to specify 3 or 4ft width
