Product Details
- Shelving configuration supported by Widespan Uprites 24″, 30″, 36″, or 48″ deep
- Utilizes Widespan Gravity Flow Inverted Beams installed offset. Rear beam is installed higher (See chart below with available offsets for respective depth and downslant angle)
- Widespan Gravity Flow Inverted Beams available 48″W
- Optional Gravity Flow Lane Guides install on grid wires to separate merchandise
- Gravity Flow Waterfall Wire Shelf includes welded steel support channels for merchandising heavy products like car batteries. Grid installs in the inverted step of the front and rear beam
- Wire shelf grid spacing is 3″ x 3″ on center
How to Order
WIDESPAN UPRITE FRAME
Widespan Uprite Frame are painted metal and are available with a reinforced Uprite Frame.
WIDESPAN GRAVITY FLOW INVERTED BEAM
Widespan Gravity Flow Inverted Beam is 48″ wide and 3-1/4″ high.
WIDESPAN GRAVITY FLOW WATERFALL WIRE SHELF
The Widespan Gravity Flow Waterfall Wire Shelf is 48″W and is made of heavy gauge wire.
WIDESPAN GRAVITY FLOW LANE GUIDE
Widespan Gravity Flow Lane Guides comes in 18″, 24″, 30″ and 42″ long.
Components (order Separately)
Ordering Instructions
- Order Widespan Uprites separately 24″, 30″, 36″, or 48″ deep in desired height (two required per individual section run and one additional for add-on sections)
- Order two 48″W inverted Widespan Beams per Gravity Flow level. A minimum of two beam levels is required per section. That could include a combination of Gravity Flow levels and flat levels. A Beam must be installed within 6″ of the floor and maximum spacing between Beams is 48″
- Order one 48″W Gravity Flow Waterfall Wire Shelf for each Gravity Flow level (See chart offset and respective angle)
System Depth
Offset (inches)
Down Slant Angle (deg.)
24
2″
6.84°
30
4″
9.17°
36
6″
10.71°
48
8″
10.41°

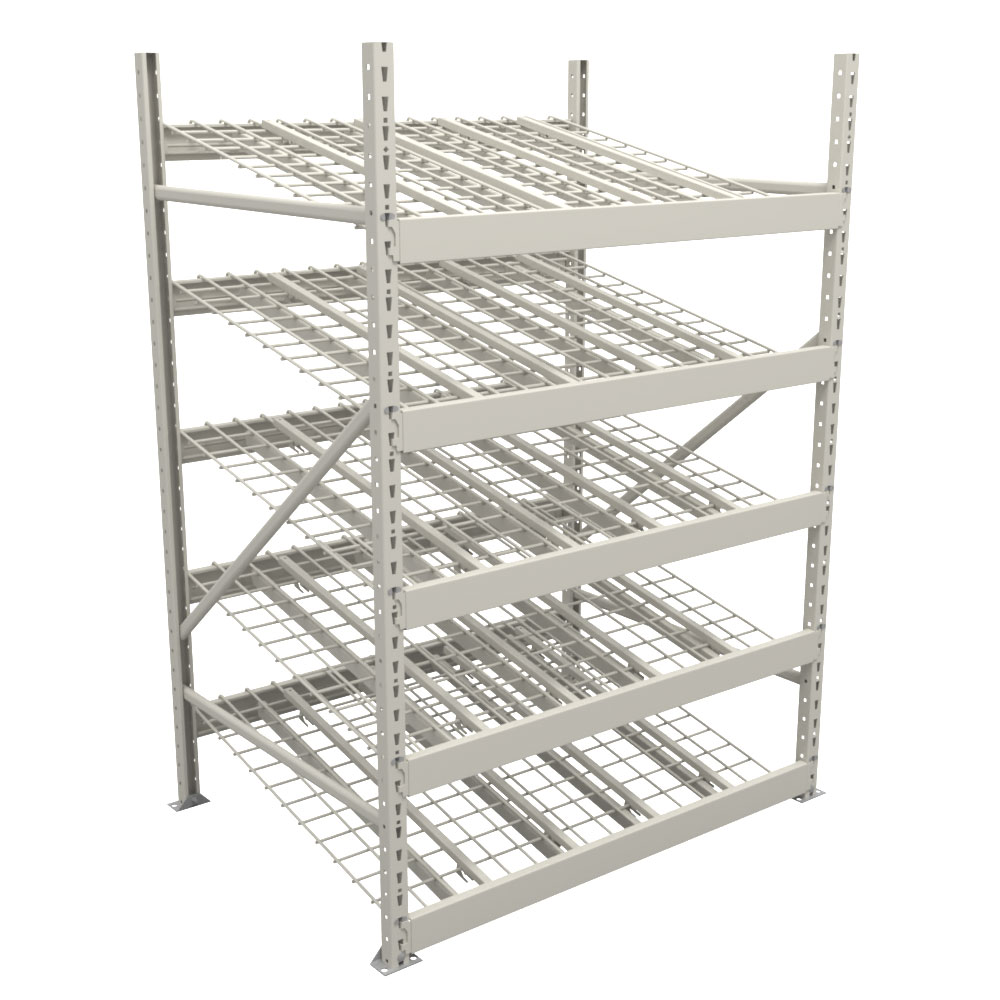

Widespan Gravity Flow Battery Rack Components
Order Separately
