Product Details
- Shelving configuration supported by Widespan Uprites 30″, 36″, or 48″ deep
- Utilizes Widespan Low Profile Beams installed offset. Rear beam is installed higher (See chart below with available offsets for respective depth and downslant angle)
- Widespan Low Profile Beams available 48″W or 60″W
- Optional Widespan Dividers and Widespan Gravity Flow Fronts install on shelf wires to separate and contain merchandise
How to Order
WIDESPAN UPRITE FRAME
Widespan Uprite Frame are painted metal and are available with a reinforced Uprite Frame.
LOW PROFILE BEAM (FOR WIDESPAN AND MULTI-FUNCTION)
he Low Profile Beam (for Widespan and Multi-Function) has a 600lb capacity and can be configured in flat or gravity feed applications.
WIDESPAN LOW PROFILE SHELF SUPPORTS (FLAT)
The Widespan Low Profile Shelf Support is available in flat or gravity feed.
WIDESPAN LOW PROFILE SHELF SUPPORTS (GRAVITY)
The Widespan Low Profile Shelf Support is available in flat or gravity feed.
WIRE SHELF (FOR WIDESPAN AND MULTI-FUNCTION) (FLAT)
The Wire Shelf (for Widespan and Multi-Function) can be used in flat and gravity feed Widespan applications.
WIRE SHELF (FOR WIDESPAN AND MULTI-FUNCTION)(GRAVITY)
The Wire Shelf (for Widespan and Multi-Function) can be used in flat and gravity feed Widespan applications.
GRAVITY FLOW FRONT (FOR WIDESPAN AND MULTI-FUNCTION)
The Gravity Flow Front (for Widespan and Multi-Function provides a stop for gravity feed merchandise
WIDESPAN FLOOR ANCHOR
Use the Widespan Uprite Frame Anchor to secure the Widespan Uprite Frame to floor. The Anchor is required when height-to-depth ratio exceeds 6 to 1 and to meet certain seismic anchoring specifications.
WIDESPAN DIVIDER
Divide merchandise on your Gravity Flow Shelf with Dividers. Available 3″H and in depth that matches Shelf depth.
Components (order Separately)
Widespan Low Profile Shelf Supports – Gravity
Ordering Instructions
- Order Widespan Uprites separately 30″, 36″, or 48″ deep in desired height (two required per individual section run and one additional for add-on sections)
- Order two 48″W or 60″W Widespan or Multifunction Low Profile beams per shelf level. A minimum of two beam levels is required per section. Required beam levels can include a combination of Gravity Flow levels and Flat levels. A beam must be installed within 6″ of the floor and maximum spacing between beams is 48″.
- Order one Widespan Gravity Wire Shelf for each Gravity Flow level (See chart offset and respective angle)
- Order one Widespan Flat Wire shelf for each desired flat level
- Order five Low Profile Gravity Supports or five Low Profile Flat Shelf Supports per level
- Order desired number of 3″H Widespan Dividers
- Order desired number of 3″H or 6″H Widespan or Multifunction Gravity Flow Fronts
- Order Widespan Floor Anchor (optional)
System Depth
Offset (inches)
Down Slant Angle (deg.)
30
6″
11.5°
30
8″
15.2°
36
6″
9.5°
36
8″
12.7°
48
8″
9.5°
48
10″
11.9°

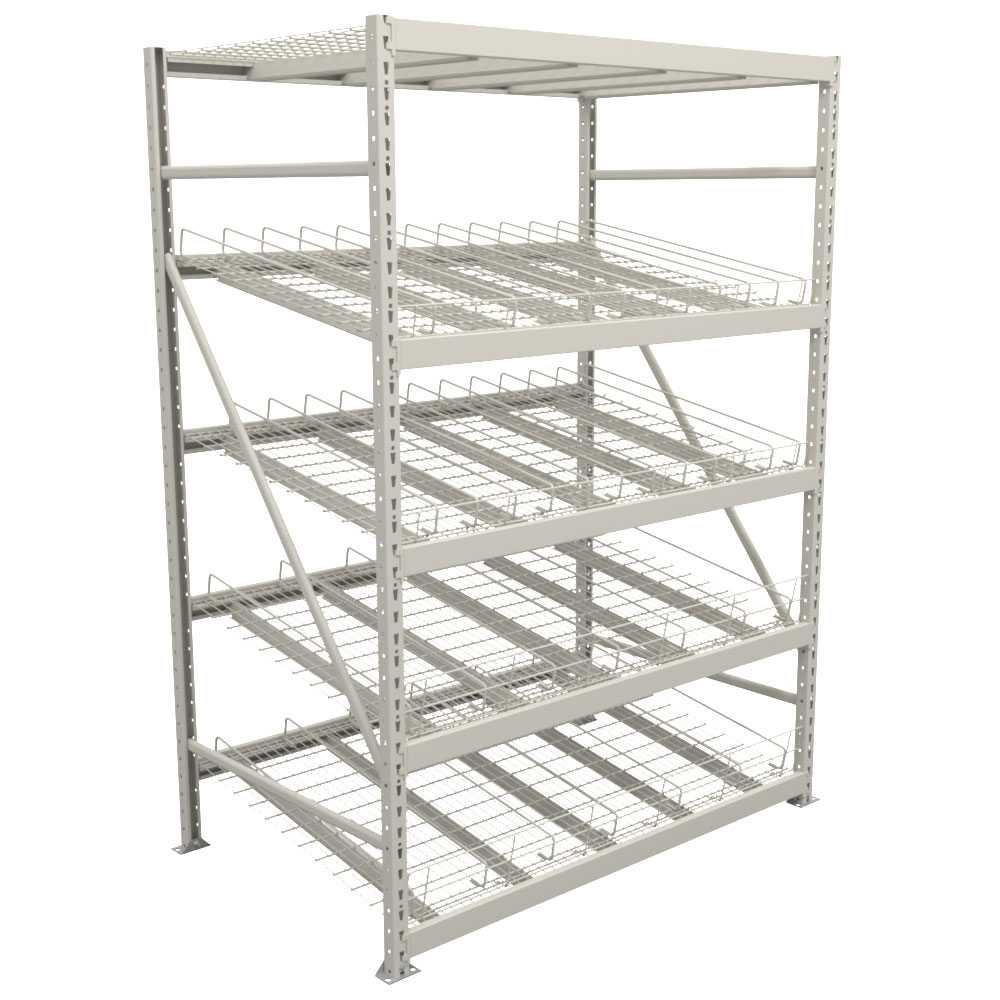

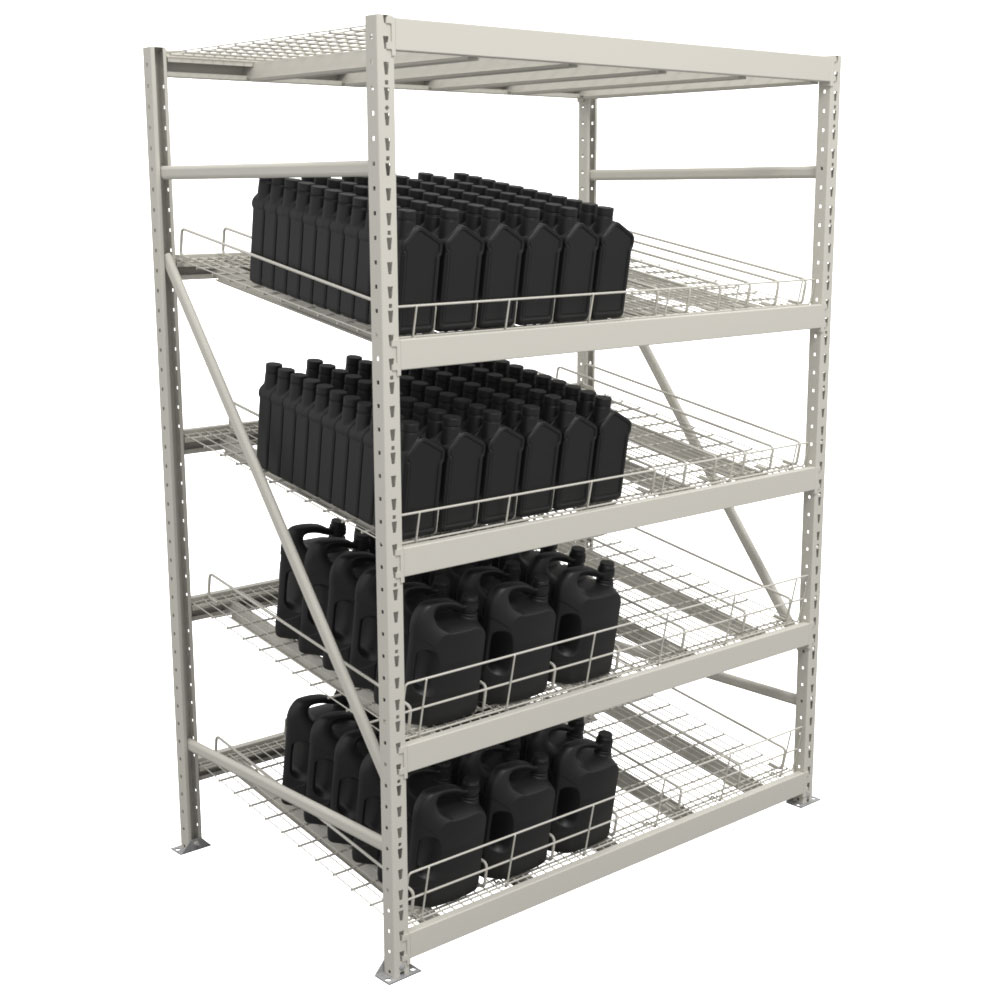

Widespan Gravity Flow Oil Rack Components
Order Separately
