Product Details
- 1″ vertical shelf adjustability
- Built-in leveling legs
- Base Brackets snap securely to Uprites via spring latch
- Electrical knockouts accommodate power & lighting
- Self-aligning Base Deck
- High Load Capacity
- Heavy Duty Uprites available for even more capacity
Load Rating Information
Standard Duty- Load Rating
- Low Base -15,000 inch lbs unbalanced
- 06 Base- 12,000 inch lbs unbalanced
Heavy Duty- Load Rating
- Low Base -18,000 inch lbs unbalanced
- 06 Base- 20,000 inch lbs unbalanced
Dimensions
Back Options
Pegboard
Marteck
Peg Woodgrain
Woodgrain
Econo Marteck

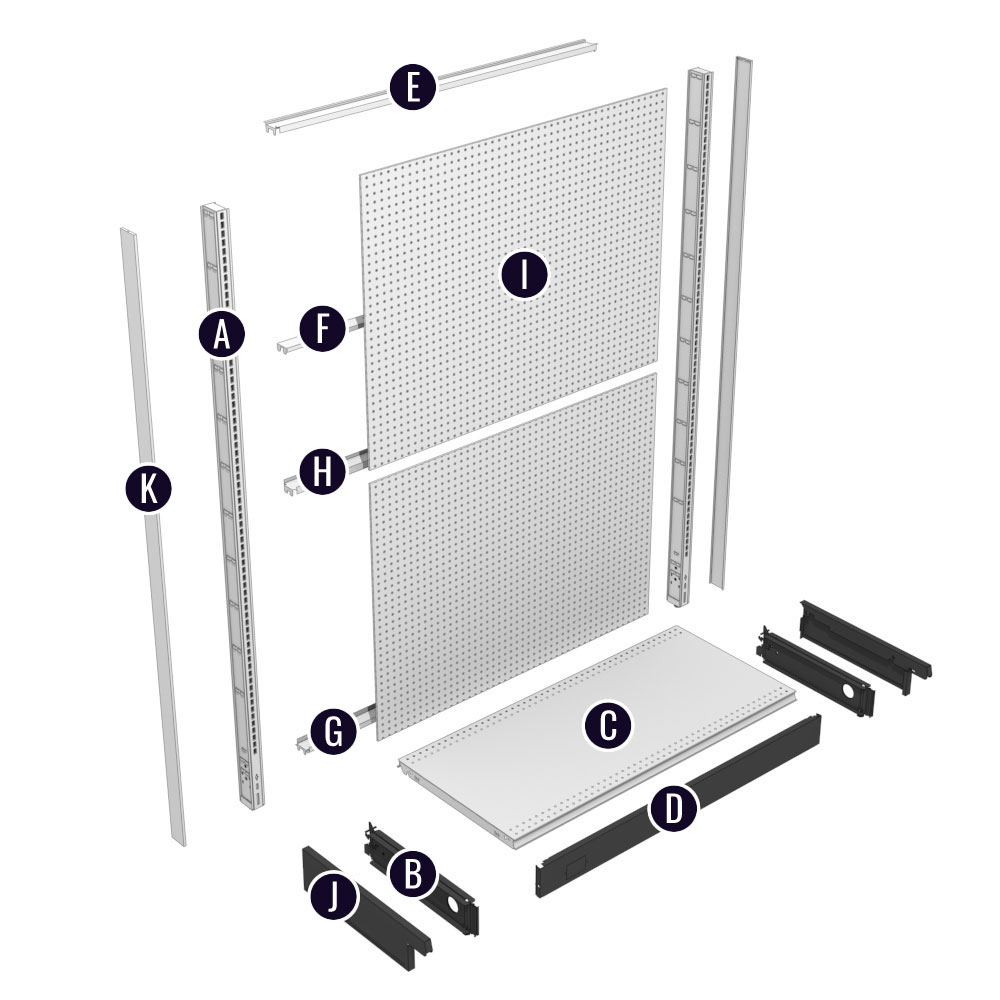

How to Order
TOP RAIL
The Lozier Top Rail is used as a top trim piece on a Lozier Gondolas and end Solutions
HARDBOARD BACK
Hardboard Back Panels come in several configurations and colors.
CENTER RAIL
The Lozier Center Rail is for use on Gondola’s utilizing Hardboard Back Panels. The Center Rail holds the Hardboard Back Panel in place and prevents bowing. Use 2 per section for heights of 78H-120H.
UPRITE
Uprites are an essential component, supporting your Backs, Rails, Shelves, Decks, Base Brackets and more. Each face of the Uprite serves a purpose in supporting your Gondola or End Solution
SPLICER RAIL
The Lozier Splicer Rail is used to separate two back panels in 78″ to 144″ high applications.
UPRITE END TRIM
Uprite End Trim snaps onto first and last Uprite and/or Extension Uprite to finish the appearance of your Gondola.
BOTTOM RAIL
The Lozier Bottom Rail holds the back in place on a Lozier Gondola or End Solution
SPRING LOCKING BASE BRACKET
Our Base Bracket serves as the foot of your Wall or Island section, locking into the Uprite using an integral spring latch. Available in Standard or Heavy Duty.
BASE END TRIM
Finish off your Island or Wall Shelving run with our Base End Trim. The Trim attaches to the first and last Base Bracket of the run, hiding the Bracket from customers’ view.
CLOSED BASE FRONT
The Closed Base Front snaps in place at the foot of your Island, Wall section or End Solution to block dust and other objects from collecting under your fixture. The Closed Base Front fits flush with the floor regardless of leveling adjustments.
STANDARD DECK
Base Deck acts as the bottom shelf of your unit and covers the floor beneath the fixture.
Components (order Separately)
Starter Quantity
Add-On Quantity
NOTE:
Center Rail: Use 1 for all fixture heights up to 96″. Use 2″ Center Rails for 102″ and taller fixture heights
Splicer Rail: Fixtures 78″ and higher will require a Splicer Rail

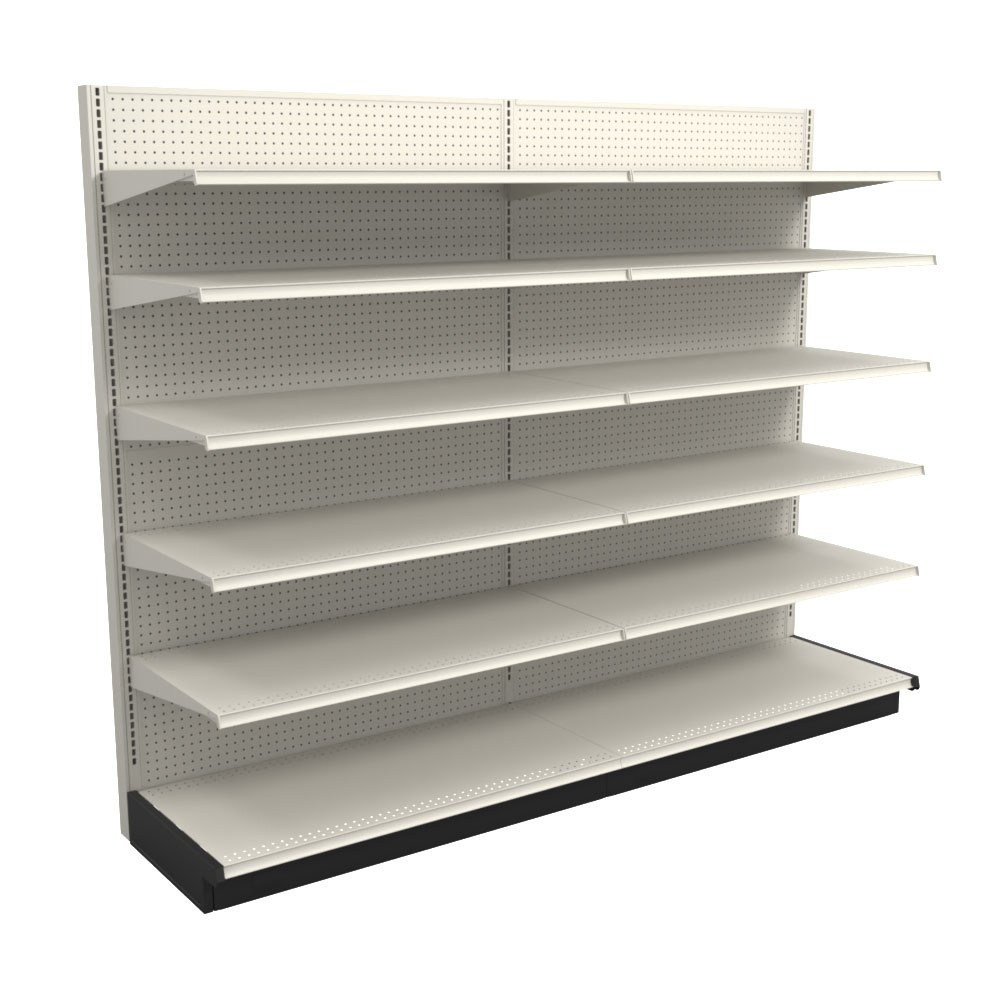

Gondola Wall (1/4″ Backs) Components
Order Components Separately
